Données techniques

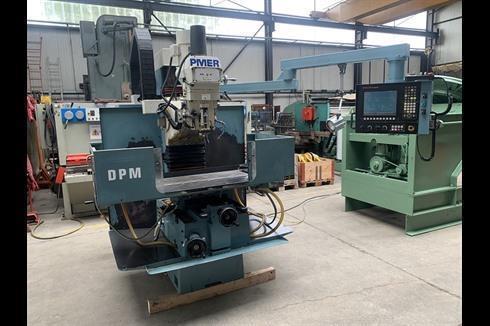

CNC Milling machine PMER type DPM
Travel X: 780 mm
Travel Y: 410 mm
Travel Z: 550 mm
Numerical Command ANILAM type 5000 M
Cone: ISO 40
Spindle exit: 120 mm (manual)
Spindle speed: from 70 to 3800 RPM
Table size: 1270 x 320 mm
Year of construction: 2004
Maxi distance spindle nose/table: 500 mm
Mini distance spindle nose/table: 100 mm
Swivel head right/left
Jog crank
Possibility to work manually (with cranks) or driven by the CN
Lubricant pump
Voltage: 380 V
Width: 1900 mm
Depth: 2100 mm
Total height: 2500 mm
Weight: 2,5 T
Marchand: RETEC MACHINES SA
