Données techniques

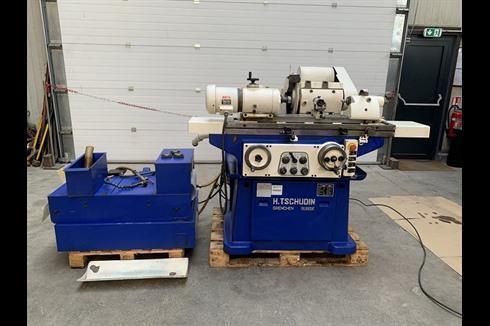

Cylindrical Grinding Machine TSCHUDIN type HTG 400
Between points: 400 mm
Centre height: 100 mm
Cone: CM4
Spindle speed: from 70 to 500 RPM
Max table travel: 420 mm
Table orientation at 15°
Grinding wheel: Ø 300 mm
Retractable tailstock CM3
Machine rebuilt by REWITECH SA (Switzerland) in 1995
Equipped with one settling tank PHILIPS
Voltage: 380 V
Dimensions (L x W x H): 2000 x 1400 x 1600 mm
Weight: approx 1,5 T
Marchand: RETEC MACHINES SA
Demande de prix
